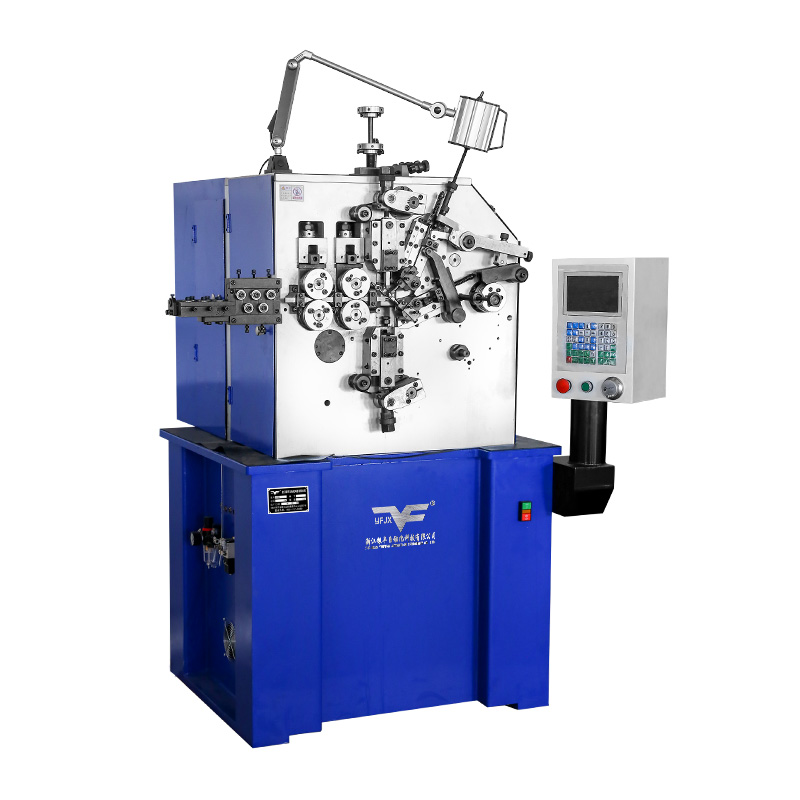

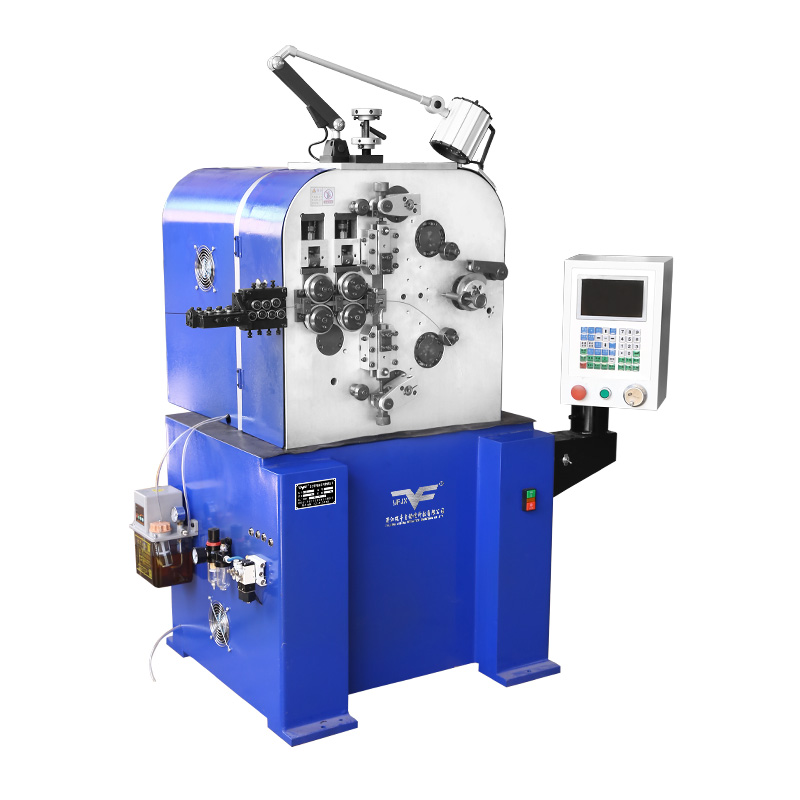

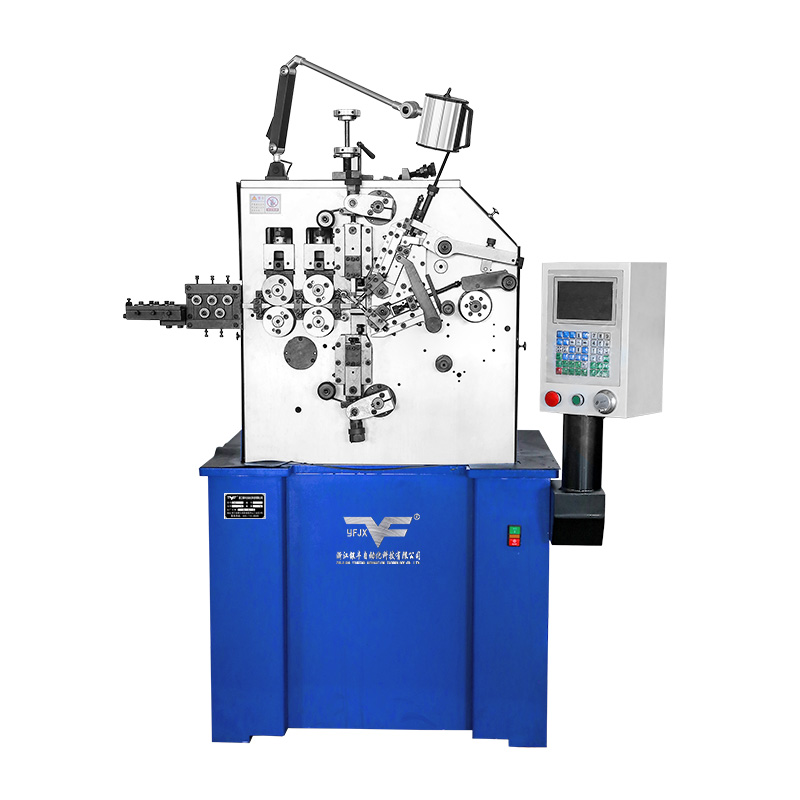

CNC-YF-8320/8330 3-axis Spring Coiling Machine

Procurement of computer control systems imported from Taiwan and technical servo motors from Japan;
The computer has a Chinese interface, easy to operate, accurate positioning, the computer can control three to eight servo motors, and all motors can run synchronously or independently;
It is equipped with a precision detection and tracking system. If there are unqualified products, the machine can stop automatically;
According to the working conditions on the fluorescent screen, the outer diameter Angle of the product can be corrected at any time;
Automatic lubrication and oil supply design for automatic mechanical parts to ensure the long-term operation of the equipment;
When the wireless, wire breaking, winding automatic stop design and wireframe automatic acceleration function, so that the production more easily and effectively;
Suitable for the production of torsion springs, straight springs, pagoda springs, tension springs, rectangular springs, wire molding, steel volute springs, springs, and a variety of fancy springs, complex and difficult-shaped springs.

PREV：CNC-YF-8512 5-axis High Speed Spring Coiling Machine NEXT：CNC-YF-8620 6-axis Spring Coiling Machine

Specification

Technical Parameters
Model	YF-8320	YF-8330
Wire diameter of coiled material	Φ0.4-Φ2.0mm	Φ1.0-Φ3.0mm
Max outer diameter of coiled spring	MaxΦ60mm	MaxΦ80 mm
Wire Feed instruction value	±0.01-±9999.99	±0.01-±9999.99
Speed	Max 250 pcs/min	Max 300 pcs/min
Cam instruction value	±0.1°-±359.9°	±0.1°-±359.9°
Wire feed servo power	2.9KW	4.5KW
Cam servo motor	2.9KW	4.5KW
Pitch axis servo power	0.4KW	0.4KW
Power supply	380V ± 10%V50HZ	380V ± 10%V50HZ
Size	1000×1000×1600mm	900×1000×1600mm
weight	400KG	800KG

Explanation

Description:
Our 3-axis spring coiling machine is a versatile and efficient solution for the production of a wide range of springs. With its advanced design and reliable performance, this machine is tailored to meet the diverse needs of spring manufacturers worldwide.

Precision Coiling Technology: The heart of our machine lies in its precision coiling technology. With a wire diameter range of 0.4mm to 3.0mm, it offers flexibility in handling various coiled materials. Whether you're working with fine wires or thicker gauges, our machine ensures accurate and consistent coiling results.

Three-Axis Control: Equipped with three axes driven by camshafts, our machine delivers precise control over the coiling process. This enables smooth and efficient operation, allowing users to produce high-quality springs with ease.

Ease of Operation: We understand the importance of user-friendly design, which is why our 3-axis spring coiling machine is designed for ease of operation. Its intuitive interface and controls make it easy for operators to set up, adjust, and monitor the coiling process. Whether you're a seasoned professional or new to spring manufacturing, our machine simplifies the production process, saving you time and effort.

Wide Application Range: From simple coil designs to intricate and complex shapes, our machine is capable of handling a wide range of spring types. Whether you're producing wire molding, steel volute springs, or fancy springs, our machine ensures consistent and reliable performance across various applications. This versatility makes it an ideal choice for spring manufacturers serving diverse industries, including automotive, aerospace, electronics, and more.

Reliable Performance: Built to withstand the demands of continuous production, our 3-axis spring coiling machine is engineered for reliability and durability. From its robust construction to its precision components, every aspect of the machine is designed to deliver consistent performance over time. This ensures less downtime and productivity for your operation, helping you meet tight deadlines and customer demands with confidence.

Customization Options: We understand that every spring manufacturing process is unique, which is why we offer customization options to suit your specific needs. Whether you require additional features, specialized tooling, or custom programming, our team will work closely with you to tailor the machine to your requirements. This ensures that you get the out of your investment and achieve the good possible results for your business.

Our 3-axis spring coiling machine offers a winning combination of precision, versatility, and reliability. Whether you're a small-scale operation or a large-scale manufacturer, this machine is designed to meet your production needs and exceed your expectations. Experience the difference with our advanced spring coiling technology and take your manufacturing capabilities to new heights.
