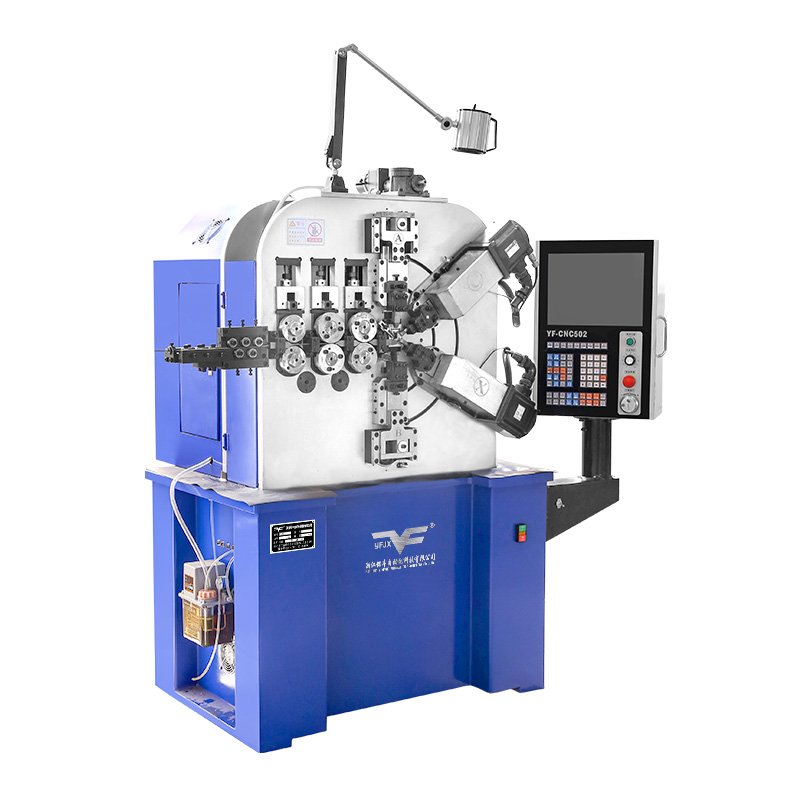

CNC-YF-8645 6-axis Automatic Spring Coiling Machine

Procurement of computer control systems and servo motors imported from Taiwan;
The computer is Chinese interface, easy to operate, accurate positioning, the computer can control three to eight servo motors, all motors can run synchronously or independently;
It is equipped with precision detection and tracking system. If there are unqualified products, the machine can stop automatically;
According to the working conditions on the fluorescent screen, the outer diameter Angle of the product can be corrected at any time;
Automatic lubrication and oil supply design for automatic mechanical parts to ensure the long-term operation of the equipment;
When the wireless, wire breaking, winding automatic stop design and wire frame automatic acceleration function, so that the production more easily and effectively;
Suitable for the production of straight spring, pagoda spring, car spring, damping spring and other high requirements of the spring.

PREV：CNC-YF-8630 6-axis High Speed Spring Coiling Machine NEXT：CNC-YF-8660 6-axis Precision Spring Coiling Machine

Specification

Technical Parameters
Axles number	6 axles	Cutter servo power (1)	1.2KW
Wire diameter	1.5-4.5mm	Cutter servo power (2)	1.2KW
Max outside diameter	65mm	Wire feed servo power	5.5KW
Max production rate	180 pcs/min	Pitch axis servo power	0.75KW
FeedCylinder probe	2 sets	Power supply	Three phase 380v
Outside diameter servo power (1)	1.5KW	Machine weight	1400Kg
Outside diameter servo power (2)	1.5KW	Machine sizes	1700×1900×1200mm

Explanation

Description:
The 6-axis Automatic Spring Coiling Machine represents an advancement in spring manufacturing technology. This advanced machine is designed to efficiently coil materials with a wire diameter ranging from 1.5mm to 4.5mm, catering to a wide range of industrial needs.

Precision Coiling Capability: With its 6-axis functionality, this machine offers unparalleled precision in coiling various types of springs. Whether it's straight springs, pagoda springs, car springs, damping springs, or other high-demanding spring types, this machine delivers consistent and accurate results every time.
Elimination of Cam Blades: Unlike traditional coiling machines, the 6-axis Automatic Spring Coiling Machine eliminates the need for cam blades to drive the coiling process. This innovative design not only simplifies the machine's mechanics but also enhances its reliability and longevity.
User-Friendly Interface: Operating the machine is made effortless with its intuitive computer interface. Displayed in both Chinese and English languages, the interface ensures ease of operation for operators of diverse linguistic backgrounds. This feature streamlines the setup and monitoring process, reducing the likelihood of errors and enhancing overall productivity.
Versatile Applications: From automotive to industrial applications, this machine is versatile enough to meet the demands of various industries. Whether you're producing springs for vehicles, machinery, or consumer goods, the 6-axis Automatic Spring Coiling Machine offers the flexibility and capability to accommodate diverse production needs.
High-Quality Output: With its advanced technology and precision engineering, this machine consistently delivers high-quality springs that meet stringent industry standards. Whether you require springs with tight tolerances or complex geometries, you can rely on this machine to produce results with less deviation.
Efficiency and Cost-Effectiveness: By streamlining the coiling process and reducing downtime, the 6-axis Automatic Spring Coiling Machine enhances overall production efficiency. Its robust construction and dependable performance also contribute to long-term cost savings, making it a sound investment for businesses looking to optimize their manufacturing operations.
Reliable Performance: Built to withstand the rigors of continuous operation, this machine offers reliable performance even in demanding production environments. Its sturdy construction, coupled with advanced automation features, ensures consistent and dependable operation, reducing the risk of disruptions and improving uptime.

In conclusion, the 6-axis Automatic Spring Coiling Machine represents a significant advancement in spring manufacturing technology, offering precision, reliability, and versatility for a wide range of industrial applications. With its innovative design, user-friendly interface, and high-quality output, this machine is poised to change the way springs are produced, helping businesses enhance their competitiveness and meet the evolving demands of the market.
