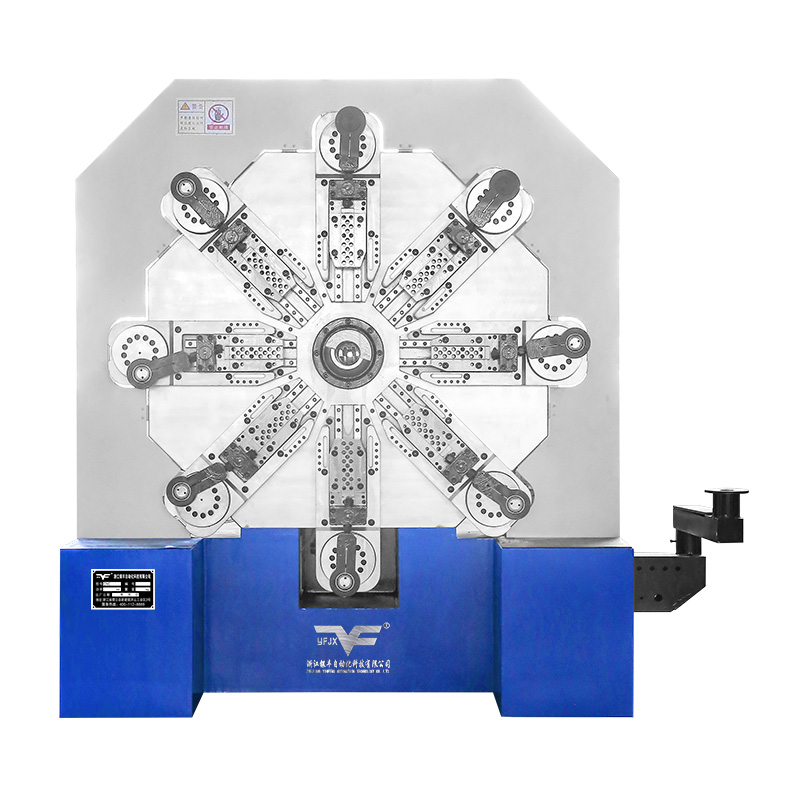

CNC-YF-1280/12100 12-axis Camless Spring Forming Making Machine

Twelve groups of servo motors independently control twelve stations, including core rotation, wire feeding, warp rotation, and wire rotation. Quick adjusting machine (more than 50% faster than CAM machine, more than 10% faster than similar products)
The drive mode of the imported servo motor and precision ball screw ensures high precision, long service life, and high stability.
The cutter seat adopts a parallel heavy load double guide rail sliding block to ensure high rigidity.
Simple operation, friendly interface, computer automatic detection of the health status of the whole machine, and alarm.
The manufacturing process of high-precision wire box gear can keep the wire feeding accuracy for a long time.
Broad application core, suitable for the production of a variety of special-shaped springs, wire forming, tension springs, compression springs, torsion springs, flat springs, volute coil springs, etc.

PREV：CNC-YF-1260 12-axis Automatic Camless Spring Forming Machine NEXT：CNC-YF-8322/8335 Cam Spring Forming Machine

Specification

Technical Parameters
Model	YF-1280	YF-12100
Wire diameter	3.0-8.0mm	5.0-10.0mm
Max Wire Feed instruction value	10000.00mm	10000.00mm
Min Wire Feed instruction value	0.01mm	0.01mm
Max Wire Feed speed	100m/min	80m/min
Max Wire Feed length	Infinite length	Infinite length
Axles number	12 axles	12 axles
Total output power of servo motor	59.5Kw	67.7Kw
Input voltage	380V	380V
Program data storage	More than 2000 pcs	More than 2000 pcs
Pneumatic system(pressure)	5-6KG/cm	5-6KG/cm
Pneumatic system(probe)	3个 3pcs	3个 3pcs
Machine sizes	2500×3100×2500mm	2500×3100×2500mm
Machine weight	5800KG	7000KG

Explanation

Description:
Introducing the 12-axis Camless Spring Forming Making Machine, an advanced innovation in the realm of spring manufacturing. With a wire diameter ranging from 3.0mm to 10.0mm, this machine redefines efficiency and precision in spring production.

Camless Design: At the heart of this machine lies its revolutionary seamless design, eliminating the need for traditional cam activation. This unique feature not only simplifies operation but also enhances reliability, as it reduces the risk of mechanical failures associated with cam-based systems.
Advanced Computer Operation: The 12-axis Camless spring-forming machine boasts advanced computer operation, providing unparalleled control and flexibility. Operators can easily program and adjust various parameters to meet specific production requirements, thereby streamlining the manufacturing process.
Stability and Time-Saving: With its advanced design and precise engineering, this machine ensures stability during operation. Its cam-free and non-rocker arm design contributes to consistent performance, reducing downtime and improving productivity.
Versatile Wire Diameter Range: Catering to a wide range of applications, this machine offers a versatile wire diameter range of 3.0mm to 10.0mm. Whether producing small springs for intricate devices or larger springs for heavy-duty machinery, it delivers accuracy and quality across various wire sizes.
Ease of Operation: Designed with user convenience in mind, the 12-axis Camless Spring Forming Making Machine is incredibly easy to operate. Its intuitive interface and user-friendly controls empower operators to navigate through functions effortlessly, ensuring smooth and efficient production runs.
Adaptable to Various Applications: Whether in automotive, aerospace, or consumer electronics, the 12-axis Camless Spring Forming Making Machine offers versatility to meet the diverse needs of different industries.
Optimized Production Workflow: By integrating advanced automation features and intelligent control systems, this machine optimizes the production workflow for efficiency. It reduces material waste, reduces setup times, and optimizes cycle times, thereby enhancing overall operational efficiency and profitability.
Comprehensive Support and Service: Behind every machine is a dedicated support team committed to ensuring customer satisfaction. From installation and training to ongoing technical support and maintenance, our team stands ready to assist customers every step of the way, ensuring a smooth and successful integration of the 12-axis Camless Spring Forming Making Machine into their operations.

The 12-axis Camless Spring Forming Making Machine represents a paradigm shift in spring manufacturing technology. With its innovative design, advanced features, and unparalleled performance, it sets a new standard for precision, reliability, and efficiency in the industry. Whether you're a small-scale manufacturer or a large industrial operation, this machine offers the versatility, productivity, and quality you need to stay ahead in today's competitive market landscape.
