Home / Product / Spring Forming Machines / CNC-YF-8545 Cam Wire Spring Forming Machine

CNC-YF-8545 Cam Wire Spring Forming Machine Wholesale

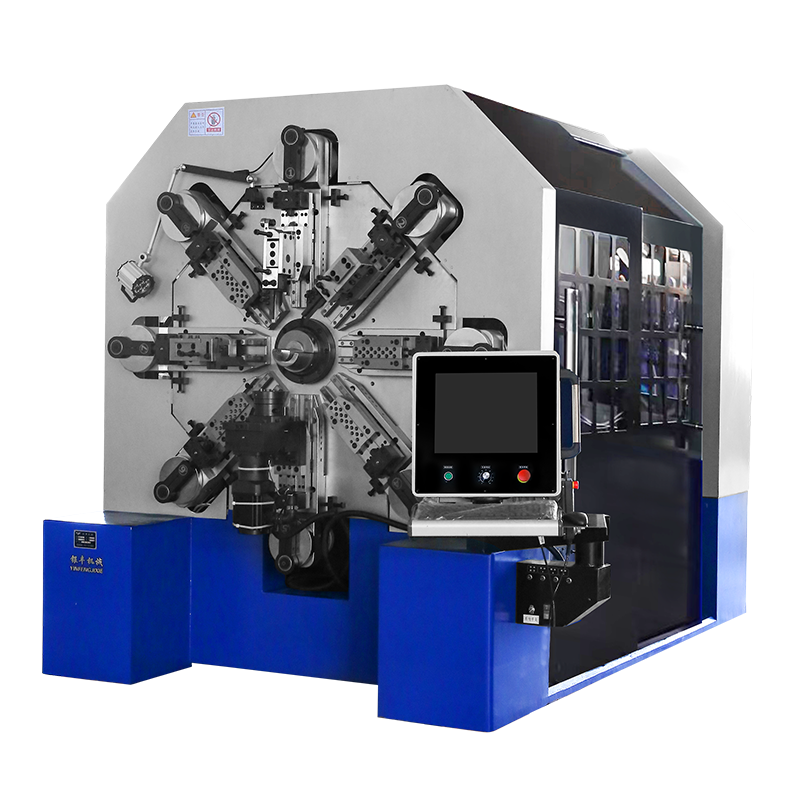

CNC-YF-8545 Cam Wire Spring Forming Machine
  • CNC-YF-8545 Cam Wire Spring Forming Machine
  • CNC-YF-8545 Cam Wire Spring Forming Machine

CNC-YF-8545 Cam Wire Spring Forming Machine

Procurement of computer control systems and servo motors imported from Taiwan;
The computer has a Chinese interface, easy to operate, accurate positioning, the computer can control three to eight servo motors, and all motors can run synchronously or independently;
It is equipped with a precision detection and tracking system. If there are unqualified products, the machine can stop automatically;
According to the working conditions on the fluorescent screen, the outer diameter Angle of the product can be corrected at any time;
Automatic lubrication and oil supply design for automatic mechanical parts to ensure the long-term operation of the equipment;
When the wireless, wire breaking, winding automatic stop design and wireframe automatic acceleration function so that the production more easily and effectively;
Suitable for the production of double torsion springs, straight springs, pagoda springs, tension springs, rectangular springs, wire molding, steel volute springs, springs, and a variety of fancy springs, complete,x, and difficult shaped springs (computer spring machine).

Contact Us
PREV：CNC-YF-8345/8350 Universal Cam Spring Forming MachineNEXT：No next article

Specification

Technical Parameters
Wire diameter of coiled material Φ1.5-Φ4.5mm(Iron wireΦ1.5-Φ6.0mm） Φ1.5-Φ4.5mm(iron wireΦ1.5- Φ6.0mm) Cam servo motor 5.5KW
Max outer diameter of coiled spring MaxΦ110mm Core-switching servo motor 1.5KW
Wire Feed instruction value ±0.01-±9999.99 Wire-switching servo motor 2.9KW
Max Wire Feed speed 0-80m/min Spinner axis servo motor 1.0KW
Cam instruction value ±0.1°-±359.9° Power supply 380V ± 10%V50HZ
Cam rotation speed 1-60RPM Size 1800×1700×2100mm
Wire feed servo power 5.5KW Weight 2800KG

Explanation

Description:
The Cam Wire Spring Forming Machine stands as a stalwart in the realm of spring manufacturing, offering unparalleled efficiency and precision without compromising on stability.

Wire Diameter Versatility: With a wire diameter range spanning from 1.5mm to 4.5mm for coiled material (extendable to 6.0mm for iron wire), this machine accommodates a wide spectrum of production needs. Whether you're working with standard materials or specialized alloys, versatility is the name of the game.

Innovative Cam Design: Embracing tradition while embracing innovation, this machine employs a meticulously crafted cam design. This design not only enhances speed but also elevates precision to levels. Every bend, twist, and coil is executed with exacting accuracy, ensuring consistent quality across batches.

Speed and Precision: The marriage of cam technology with advanced engineering results in a machine that operates at speeds while maintaining precision. Whether you're churning out double tension springs, straight springs, or complex pagoda compression springs, the Cam Wire Spring Forming Machine delivers with finesse.

Diverse Applications: Versatility is a hallmark of this machine. From the production of standard springs like rectangular and conical varieties to more intricate wire forming and shaped springs, the possibilities are endless. Whether you're catering to the automotive, aerospace, or consumer electronics industries, this machine rises to the occasion.

Stability and Reliability: Beyond its impressive speed and precision, this machine boasts unwavering stability and reliability. Each component is engineered to withstand the rigors of continuous operation, reducing downtime and improving productivity. With the Cam Wire Spring Forming Machine, you can count on consistent performance day in and day out.

Cost-Effectiveness: While some may equate sophistication with exorbitant costs, this machine defies such notions. Offering a traditional style with an affordable price tag, it provides value without compromising on quality.

In conclusion, the Cam Wire Spring Forming Machine stands as a testament to ingenuity, precision, and reliability. With its versatile capabilities, innovative cam design, and unwavering performance, it paves the way for a new era in spring manufacturing. Whether you're crafting springs for automotive suspension systems or precision instruments, this machine is poised to exceed your expectations and elevate your craft to new heights.
